GHLW Series Freeze Dryer：
√ Energy-saving: The design of all-copper heat exchange pre-cooling and regenerator, fully recovering the compressed air cooling capacity after cooling, reducing the heat load of the evaporator, making the refrigeration compressor easy and easy to operate and reducing energy consumption.
√ Efficient: Corrugated copper heat exchange tube with aluminum fins in the form of evaporator, independently designed baffle plus cyclone separation plus stainless steel wire filter gas water separator, double drainage drainage layout, so that water and gas separation efficiency reaches 99% .
√ Intelligent: Multi-channel temperature and pressure monitoring, real-time display of dew point temperature, automatic recording of accumulated running time, self-diagnosis function, display corresponding alarm code, and automatic protection of equipment.
√ Stable: specially optimized water condenser heat dissipation design, increased heat exchange area, allowing the cold drying machine to cope with extreme high temperature use environment, effectively avoiding the widespread summer high temperature jump phenomenon in common commercial dryers, increasing channel filtration The filter removes the impurities that may exist in the cooling water, increases the water volume adjustment solenoid valve, and automatically adjusts the cooling water amount according to the actual operating conditions to ensure the stable operation of the cold dryer.

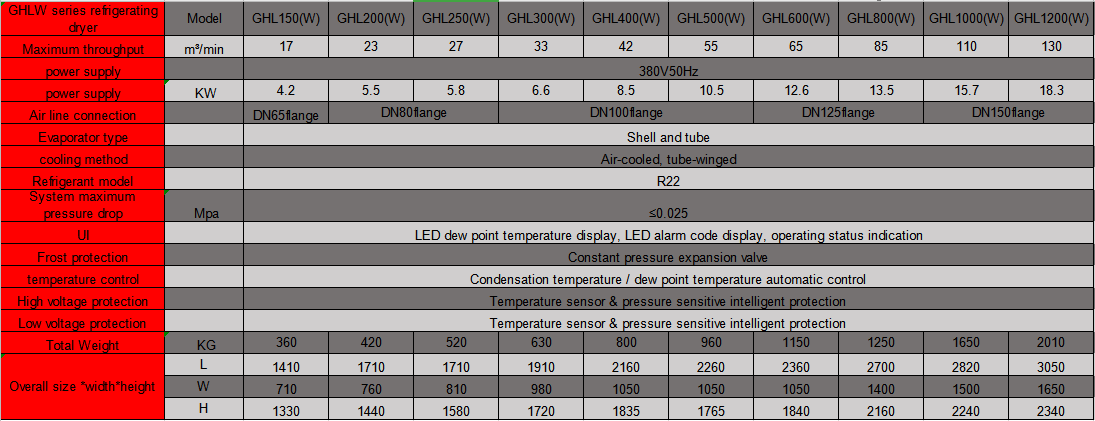

Product Model Parameter Table:
GHLW Series Shell and Tube Dryer
Rated ambient temperature: 38 ° C, up to 42 ° C
Rated compressed air inlet temperature: 38 ° C, up to 65 ° C
Rated compressed air pressure: 0.7MPa, maximum 1.0MPa
Pressure dew point under rated conditions: 2 ° C ~ 10 ° C (atmospheric dew point: -23 ° C ~ -17 ° C)
Installed environment: no sun, no rain, good ventilation, installed in a horizontal hard foundation, no obvious dust and flying spots?
For more information about the specification,welcome to contact us!
Phone: 0755-28686438
E-mail: [email protected]
