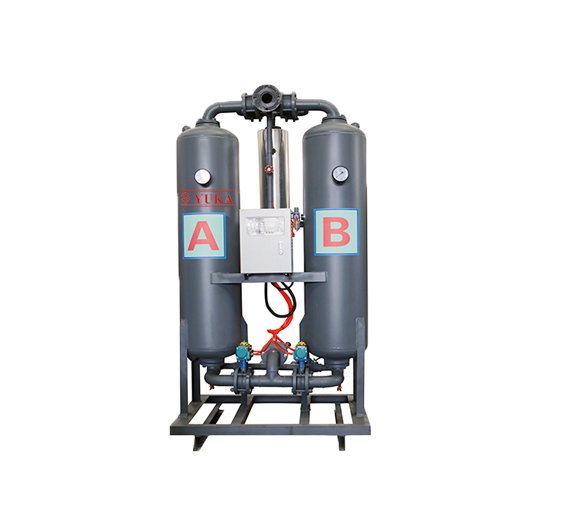

HL Series Micro-heat Regeneration Adsorption Air Dryer
Working condition:
Rated compressed air inlet temperature: 38 ° C, up to 45 ° C
Rated compressed air pressure: 0.7MPa, maximum 1.0MPa
Pressure dew point under rated conditions: -20 ° C ~ -40 ° C (molecular sieve up to: -70 ° C)
Intake oil content: 0.08ppm (0.1mg/m3)
Dust particle size of finished product: ≤ 60μm
Average re-flow rate: 10~22 rated treatment gas volume
Adsorption type: Activated alumina (higher molecular sieve available)
Pressure drop: ≤ 0.021Mpa
Regeneration method: Normal temperature regeneration
Working mode: Two towers 4min or 10min automatic switching, continuous work
Control mode: Cycle period 4~10min adjustable
Installation method: Indoor, allowing no basic installation
Convenient and practical cycle time mode and energy-saving economy mode, regeneration gas volume, the program is adjustable to suit various practical conditions and export dew point requirements.

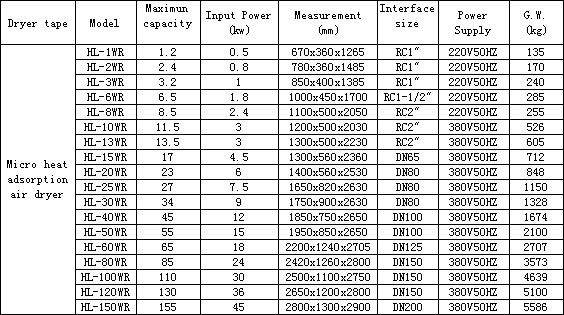

Product Model Parameter Table
Rated Condition
| Rated compressed air inlet temperature: 38℃, maximum 45℃ | Adsorption formula: activated alumina (molecular sieves are available for higher requirements) |
| Rated compressed air pressure: 0.7mpa, up to 1.0ma | Pressure: 0.021 Mpa or less |
| Pressure dew point under rated working condition: -20℃-40℃(molecular sieve up to : -70℃) | Regeneration method: regeneration at room temperature |
| Intake oil content: 0.08pm(0.1mg/m3) | Mode of operation: the two towers are switched automatically for 4min or 10min and work continuously |
| Dust particle size of finished gas: ≤60 m | Control mode: cycle cycle 410min adjustable |
| Average reflow rate: 10~22 rated air capacity | Average reflow rate: 10~22 rated air capacity |
For more information about the specification, welcome to contact us!
