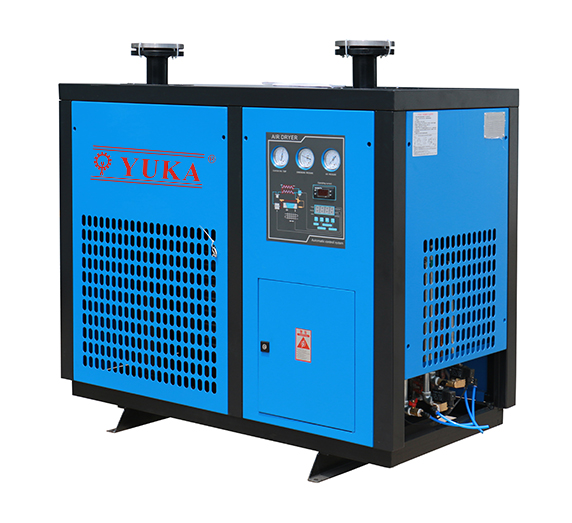

GHL Series Shell and Tube Air Drier
√ Energy Saving: The design of all copper heat exchange precooling and recuperator can fully recover the cooling capacity of compressed air after cooling,reduce the heat load of evaporator, make the refrigeration compressor operate easily and reduce energy consumption.
√ Efficient: The evaporator with corrugated copper heat exchange tube and aluminum fins, the gas-water separator with independently designed baffle, cyclone separation and stainless steel wire filter screen, and the layout of two-way drainage and sewage discharge make the water-gas separation efficiency reach more than 99%.
√ Intelligence: Multi channel temperature and pressure monitoring, real-time display of dew point temperature, automatic record of accumulated running time, self diagnosis function, display of corresponding alarm code, automatic protection of equipment.
√ Stable: The specially optimized cooling design of condenser increases the heat exchange area and makes it can be used in the extremely high temperature environment calmly, effectively avoiding the phenomenon of high temperature jump in summer commonly existing in the common market dryers, and ensuring the temperature operation of the cold dryers

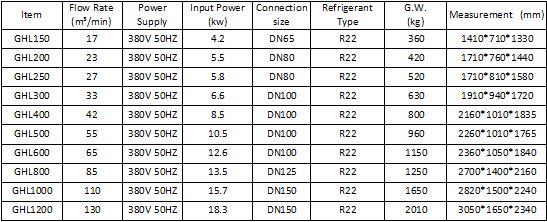

Product Model Parameter Table
Rated Condition
Rated ambient temperature: 38℃ maximum 42℃
Rated inlet temperature of compressed air: 38 C, maximum 65℃
Rated compressed air pressure: 0.7MPa, maximum 1ma
ressure dew point under rated working condition: 2℃- 10℃ (atmospheric dew point: -23℃--17℃)
stallation environment: No sun, no rain, good ventilation, installed on the level of hard foundation, no obvious dust and flyash
For more information about the specification,welcome to contact us!
