WS Series Gas-water Separator

Problems in air system

There is a lot of water in the air compression system, which will cause corrosion of pipes, permanent damage of valves, cylinders, pneumatic tools and instruments, and decrease the efficiency of the after cooler heat exchanger.

Installation benefits

After testing, more than 99% of liquid water can be removed by installing YUKA high efficiency cyclone gas water separator, which to a certain extent protects the dryer, post-treatment filter and improves the performance of these equipment.

√    Reduce the corrosion of pipes and damage to valves, cylinders, electronic components and other equipment caused by moisture

√    Protect the filter from large amounts of liquid contamination

√    Improve air quality

√    Protect the prefilters of the cold dryer and the suction dryer

√    Efficient removal of all fluids

√    Reduce operating and maintenance costs

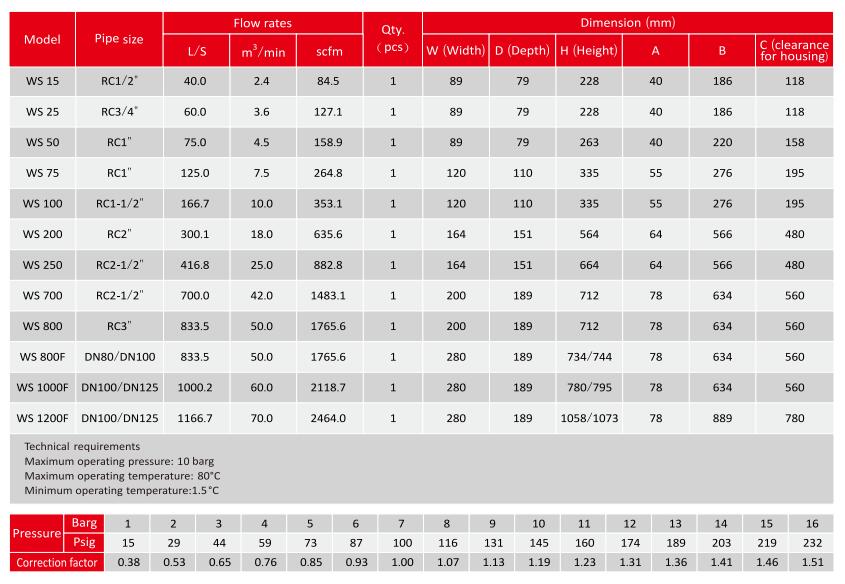

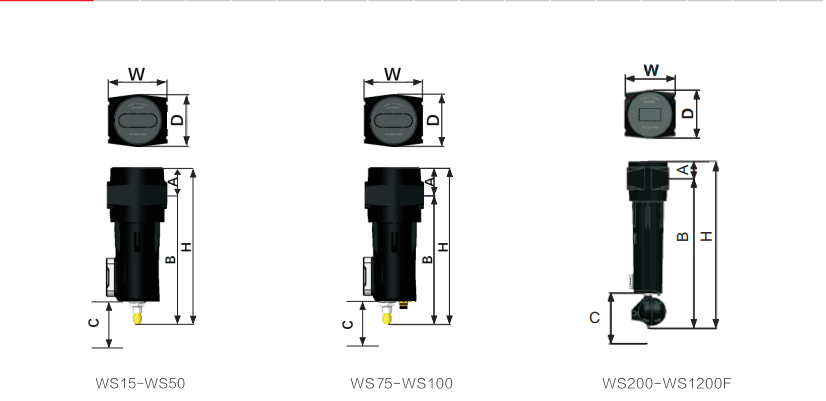

Product Selection

The following flow is the compressed air treatment flow under the working pressure of 7 bar (100 psig). For other applications under the working pressure, please refer to the following correction coefficient.

For more information about the specification,welcome to contact us!
